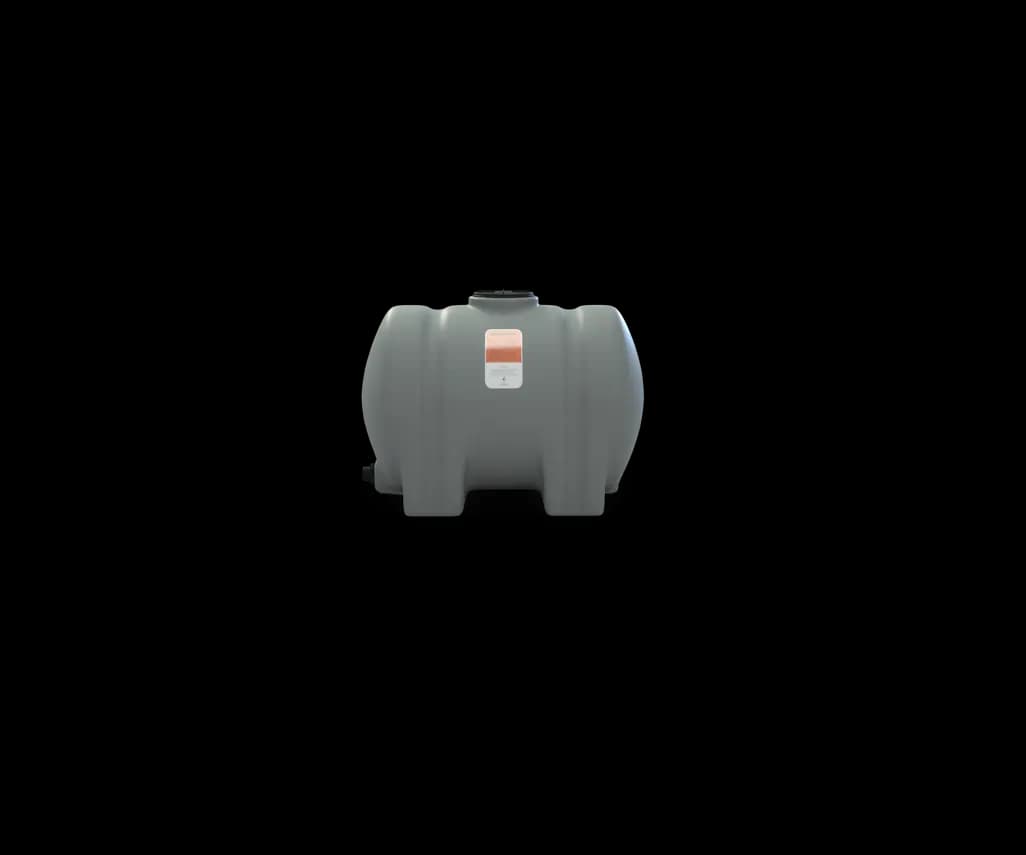

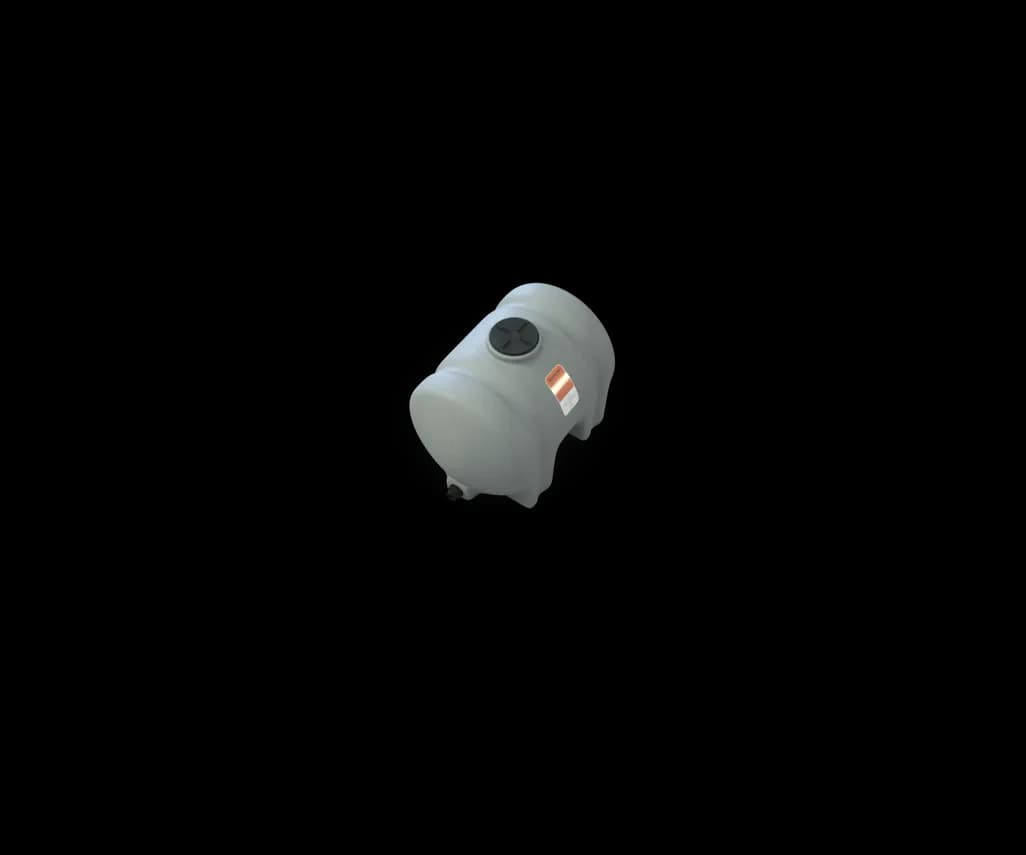

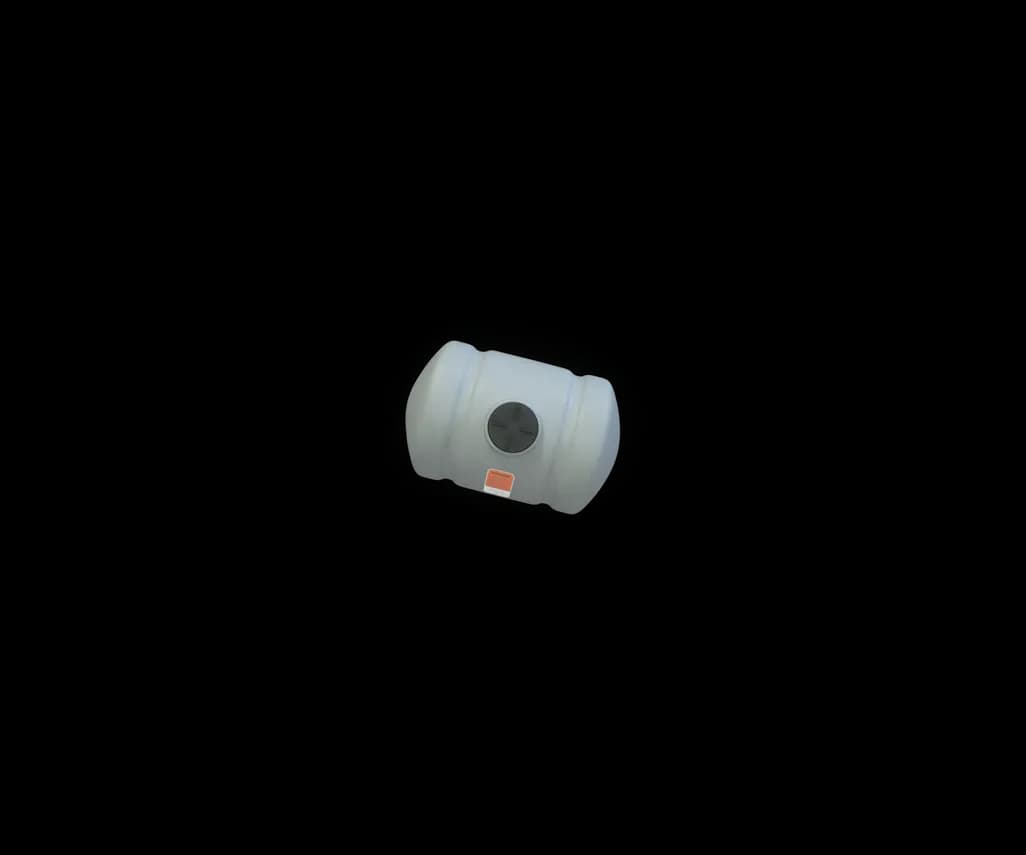

Horizontal Leg Tanks
The AK Horizontal Leg Tank is a rotationally molded, FDA-compliant liquid holding tank that can be
used with drinking water, fertilizers, or chemicals. It is suitable for both indoor and outdoor usage due to UV inhibitors. This tank can be mounted to vehicles and used to transport liquid for a variety of industries such as agriculture, livestock, or construction.
Material
US FDA 21 CFR 177.1520 (c)3.1a (WHITE)
Note
For transporting water, fertilizer, and chemicals • UV Inhibitors • Rotationally Molded – durable and crack-resistant • Max temperature: 140 degrees F • Graduated Gallon Indicator Markings • 0.75” Bulkhead Fitting Outlet • Includes 5” cover for 30,65, and 125 gallons & 12″ cover for 225, 325 • Tensile Strength – 3100 psi
| Part Number | Capacity | Weight | Wall Thickness | Technical Drawings |
|---|---|---|---|---|
AKW10030 | 100gal | 75lbs | 0.21" | |
AWK10065 | 65gal | 32lbs | 0.21" | |
AKW10125 | 125gal | 51lbs | 0.21" | |
AKW10225 | 225gal | 80lbs | 0.21" | |
AKW10325 | 325gal | 105lbs | 0.21" |
